Windows integration

The ObserveID Windows integration facilitates access and user management by accumulating security information, providing access auditing capabilities, supporting remote sessions, and establishing a secure infrastructure for efficient work. This integration communicates with remote computers using PowerShell Remoting via WinRM (Windows Remote Management), which is Microsoft's implementation of the Web Services for Management protocol. It can import integration data and operate in read-only mode or perform authorized actions. These actions include provisioning access, establishing remote sessions with enabled file transfer, detecting access, generating audit logs, and more.

Microsoft Windows is a series of operating systems for use on personal computers, business desktops, laptops, tablets, and other computing devices. This section describes how to set up the integration with a Windows system, including configuration of the integration and schema details for the Windows integration data.

In this section:

Overview
Windows integration operations
Pre-requisites to setup of Windows integration
WinRM on the Windows target
WinRM on the machine with UC
Setup of Windows integration
First load of data from Windows target
Coding integration rules

Overview

The Windows integration allows one to manage Windows users and groups, and monitor and control access to the computer. From the high-level perspective, the following integration data is retrieved from Windows:

Windows groups;
local or domain users;
entitlements assigned to users;
properties attributed to users.

To create a Windows integration in ObserveID and get ready for the use, the base setup and configuration flow includes the following steps:

Prerequisites must be implemented on Windows for ObserveID.
Configuration of WinRM must be performed on the Windows target, and if needed, on the machine with UC running on.
Connection parameters must be set up on ObserveID for the Windows target.
First load of data from Windows to ObserveID should be successfully completed.
Coding integration rules according to the business case requirements is the final step before the Windows integration is ready for use in ObserveID

Windows integration operations

A Windows integration can perform the following operations on the Integration Data:

Integration Operation	Used by	General description	Integration-Specific Requirements
Account Management
Create Account	Permanent Access Request, Temporary Access Request, Onboarding, Reinstatement, Role Creation, Role Update, Identities Update	The Windows integration can create accounts. It requires Additional Properties to be established for accounts. The Additional Properties are coded with Provisioning Rules.	The Additional Properties mandatory on the creation of a Windows account are: `Name`
Credentials Update	Password Change Request, Privileged or Firecall Unlock Request	A password is established on Account Creation. The password can be updated with a workflow according to the Password Policy. For Privileged or Firecall account types, the password can be rotated. The password is rotated if ‘yes’ is established for a Windows account in its ‘Rotatable’ property.	The following Password Policies are available for the Windows integration: `Auto Generated Permanent Credentials` `Set Specific Permanent Credentials`
Delete Account	Account Removal, the Finish action on Temporary Access Request	The Windows integration can delete accounts. The respective history records are stored for every Identity.	n/a
	Offboarding, Emergency Deprovisioning	When an Identity is terminated, their Windows account(-s) are deprovisioned according to the Windows Leaver Rule.	During Identity Termination, the Windows integration Leaver Rule can set one of the following available options: the Windows accounts can be locked; the Windows accounts can be locked and deprovisioned of all or some Entitlements; the Windows accounts can be deleted. For coding the Windows Leaver Rule, refer to the Coding Integration Rules section below.
Lock Account	Privileged Access Management, Firecall Unlock Request	When the Windows integration unlocks Privileged or Firecall accounts, it sets the usage period for the account.	When the Windows integration unlocks an account, the boolean Account is disabled property gets the `false` value.
Unlock Account	Privileged Access Management, Firecall Unlock Request	On the Finish button or on the end of the usage period, the unlocked account is locked back.	When the Windows integration unlocks an account, the boolean Account is disabled property gets the `true` value.
Update Account Additional Properties	Identities Update	Windows account properties can be updated if the Identity property has changed. Provisioning Rules can be configured to pass the Identity property to the Windows account.	The Additional Properties allowed on the update of a Windows account are: `Account expires` `Comment` `Country/region code` `Full name` `Home directory` `Logon script` `Password required` `User's comment` `Workstations allowed` For what information can be displayed for a Windows account, refer to the schema of Windows integration data.
Entitlement Management
Grant Account Entitlements	Permanent Access Request, Temporary Access Request, Manage Access, Role Creation, Role Update, Identities Update	The Windows integration can assign an account with an entitlement.	The Windows entitlements that can be assigned are: `Windows Groups`
Revoke Account Entitlements	Manage Access, Role Update, Role Deletion, Identities Update	The Windows integration can revoke an entitlement from the account.	The Windows entitlements that can be revoked are: `Windows Groups`
Domain Controller
Read-Only mode	No operation	Edge case: when the Windows machine is set up as a Domain Controller.	None of operations on local accounts are available available. Domain accounts are fetched as Federated accounts from the LDAP integration enabled with federation capabilities. Management of domain accounts happen on the LDAP integration side. For details, refer to the LDAP integration documentation.
Target Management
Pull Data	DataImport task, Identities Update, most workflows	The Windows integration imports users and groups as part of the Integration Data. The configuration of the Windows target impacts what data is reflected in the integration. There are options:	For the schema of the fetched integration data, refer to the subsequent section.
		Standalone Windows	Local Users and Local Groups are fetched.
		Domain-Joined Windows	The Treat Domain-Joined VM as Standalone toggle in the integration configuration determines to fetch local or domain users and groups.
		Domain Controller Windows	Built-in Local Users are fetched.
		Correlation and Customization Rules can be configured to recognize the Identity for an account and the account type.	Refer to the requirements to Correlation and Customization Rules.
Test Connection	Test Connection function	It is possible to troubleshoot if there is a connection between ObserveID and the Windows target.	n/a
Blocked List	Pull Blocked List task; Push Blocked List task	With the Blocked List agent installed on the Windows machine, ObserveID can block access to a user on the server.	The Windows-specific Blocked List parameters for defining what access to block: `IpAddressMask`, `LoginName`, `StartTime`, `Finish Time`
Access Detection
Detect Access	Audit Log report type of Analytics	The Windows integration can help one track the user’s sessions on the Target.	`600` is the default period in seconds for the Consider Session Closed parameter.
		User sessions detected on the Windows target can be compiled into a report. The detected session records are provided with extra details: system properties, such as: session ID, start\end time, account name, type, etc. Windows-specific additional properties.	Windows-specific additional properties of the detected sessions are as follows: `Access State` `IP Address` `ClientNetAddress` `Object Name` `TextLogEventType` `DurationMinutes` `Is File` `Is Readonly`
Detect Access Text Logs	Information generated by the Windows machine.	Windows provides log events for every detected session with the following json-data schema: `IsFile` `Accesses` `UserName` `TimeStamp` `ObjectName` `UserDomain`
Remote Connection
Remote Connection	Connect in My Access	The Windows integration can establish a remote session via the ObserveID user interface.	The parameters below should be specified in the Details of a Windows integration: `Rdp` connection type; `Remote desktop` selected for the content type; IP address of the remote machine; `3389` as the port number.
Virtual Drive	The Windows integration can set up a virtual drive to store the uploaded files and enable downloading files from the remote computer.	Given that the remote connection is set up for a Windows integration, the enabled `Enable Drive` toggle in the Details of the integration allows the user to transfer files.
SFTP support	With the Windows integration, users can transfer files over SFTP and utilize a built-in File Manager.	Two prerequisites for that are: established remote connection configuration on ObserveID; installed and running an SFTP server on the Windows machine. Afterwards, the following SFTP parameters must be specified for SFTP on ObserveID: IP address of the SFTP host; `22` as the port number; SFTP username; SFTP password or private key.

Pre-requisites to setup of Windows integration

There are prerequisite activities that are required to be performed on the Windows target before the connection to the Windows target is initialized by the Universal Connector. Below is a short overview of prerequisites to complete:

Pre-requisites	Values	Description
Administrator permissions	`Administrators`	The account intended for ObserveID, created in the Windows target and specified in the connection details of the Windows integration, should be of the system user account type and added to the `Administrators` group.
User/Password authentication	n/a	WinRM on the machine with the UC running may require credentials (i.e., a username and password pair) for authentication on the Windows target.
PowerShell utility	n/a	The PowerShell utility is used to send commands to the WinRM service, thereby configuring the machines and allowing remote access to the Windows target.
WinRM service	n/a	The WinRM service must be configured and running on both machines: the Windows target machine, and the machine with the UC. The UC uses WinRM to connect to the Windows target. Further details on the configuration prerequisites for the WinRM service are provided below.
Allow TCP/UDP outbound connection in Firewall	`<IP address of Target>`	The firewall on the machine running the UC should permit TCP/UDP outbound connections using the WinRM service to the Windows target machine.
Allow TCP/UDP inbound connection in Firewall	`<IP address of UC>`	The Windows target machine’s firewall must permit inbound TCP/UDP connections via the WinRM service for the machine running the UC.

WinRM on the Windows target

Below is a set of commands to configure WinRM on the Windows target.

1 - The WinRM service should be running on the Windows target. The following Powershell command (re)starts the WinRM service.


            net start winrm

2 - The list of trusted hosts on the Windows target should include the machine's IP address with the UC. The following PowerShell command adds the IP address to trusted hosts.


            Set-Item WSMan:\localhost\Client\TrustedHosts -Value "host_with_universal_connector_ip_address"

3 - If the connection over HTTPS is required to communicate with the Windows target, the WinRM service is enforced to communicate over the HTTPS protocol with the following PowerShell command. The respective certificate is needed.


            winrm quickconfig -transport:https

4 - The PowerShell on the Windows target should have remoting enabled.


            Enable-PSRemoting

5 - If needed, with the following PowerShell command, allow inbound connections from the machine's IP address with the UC on the Firewall of the Windows target.


            New-NetFirewallRule -Name "WINRM-HTTP-In-TCP-PUBLIC" -RemoteAddress "Address"

WinRM on the machine with UC

Below is a set of commands to configure WinRM on the machine with UC.

1 - The list of trusted hosts on the Universal Connector VM should include the Windows target machine's IP address. The following PowerShell command adds the IP address to trusted hosts.


             winrm set winrm/config/client '@{TrustedHosts="target_machine_ip"}'

If needed, the command below allows the connection from the machine with UC to any target:


            set-item wsman:localhost\Client\Trustedhosts -Value *

2 - If required, it is possible to check the entire list of all permitted targets with the following command.


            get-item wsman:\localhost\Client\TrustedHosts

3 - If needed, it is entirely optional; using the WinRM services, it is possible to establish the connection to the Windows target with the following command and, thus, to test that it works.


            Enter-PSSession -ComputerName target_machine_name_or_ip -Credential target_machine_username

4 - This step is for troubleshooting, if WinRM services does not work due to proxy issues, run below commands to bypass proxy:


            netsh winhttp show proxy
            netsh winhttp reset proxy

Setup of Windows integration

The connection parameters specified below must be populated in ObserveID for the Universal Connector to connect to the Windows machine as a Target. The connection parameters are established in: ObserveID > Identity Automation > Integrations > {specific Windows integration} > Details.

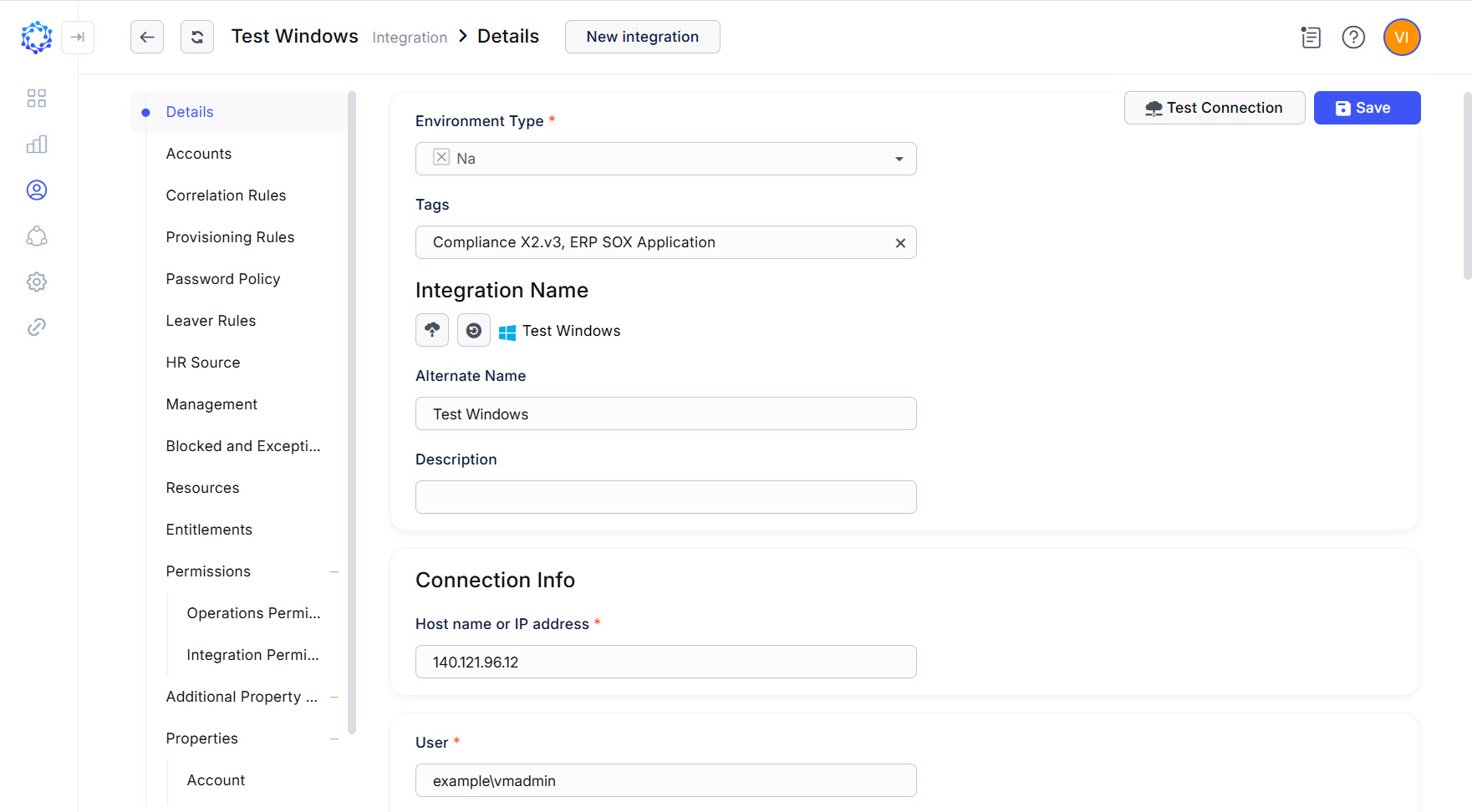

Windows integration config

Connection parameter	Description
Environment Type	Environment the new integration pertains to. The Na option establishes no environment.
Integration Name	Automatically generated name for the new integration. The name is created by combining the Integration Type with what is established as Environment Type, Alternate Name, and Description for the new integration.
Alternate Name	Any preferred name for the new integration.
Description	Any valid text to differentiate one integration from another. This text is displayed in addition to the integration name in several UI elements, e.g., dropdown lists, in the system.
Hostname or IP address	Hostname, or IP address of the Windows VM.
User	User ID of the account intended for ObserveID on the Windows target.
Password	Password of the account intended for ObserveID on the Windows target.
Consider session closed if no action for seconds.	Timeout in seconds, after which the UC would automatically send the ClosedSessionEvent.

First load of data from Windows target

After the connection parameters are established for Windows in ObserveID and the connection test is completed, the next step is to load the first data. It allows the systems to set up an initial point, starting from which it is possible to determine and synchronize deltas later. For the data loaded, refer to the schema of the Windows integration data.

There is a DataImport task that is used to perform the initial load, as well as subsequent data imports.

The DataImport task is automatically created for the Windows integration when the integration is saved. However, if anything, it is possible to manually create a DataImport task in:

ObserveID > Identity Automation > Workflows

The DataImport task is considered successful if the integration data (i.e., accounts, entitlements, resources, and additional properties) is imported and displayed in the Windows integration in ObserveID.

Coding integration rules

By C#-coding the integration rules, the functional capabilities of the Windows integration are configured ad hoc to meet the requirements of a specific business case. In addition to flexibility, an essential factor in data management is the ability to maintain consistency across multiple systems within the organization's infrastructure. The integration rules help to determine identity data in relation to the Windows integration.

Below are the code samples and the Dependable variables \ parameters presented are the examples of how the integration and identity data can be defined.

Functional area	Integration Rules	Description	Dependable variables \ Parameters
Identity correlation	Correlation Rule	Since the `Name` property is mandatory for an account, it can be compared with the name of an Identity and thus utilized for the correlation rule, unless business-driven needs require otherwise. The correlation establishes the Identity as the owner of an account.	Account’s `Name`; Identity’s `Name`
Differentiating accounts by type	Customization Rule	Given that an identity is allowed to have only one account on a Windows machine, if the `Name` property of the account matches the `Name` property of an identity, the account type is determined as a user account; otherwise, it can be classified as an orphan account type.	Account’s `Name`; Identity’s `Name`
Account Creation	Provisioning Rules	Provisioning Rules set additional properties for the Windows accounts created or updated in ObserveID. The following additional properties of a Windows account can be established with the Provisioning Rules: `Name` `Account expires` `Comment` `Country/region code` `Full name` `Home directory` `Logon script` `Password required` `User's comment` `Workstations allowed`	Identity’s `Name`
Identity Termination	Leaver Rule	Windows integration has no constraints on how accounts should be deprovisioned in the event of an Identity's termination. And all Leaver Rule options are applicable. The Leaver Rule defines how to treat Windows accounts when an identity is terminated. A code sample of the Leaver Rule is presented in the following sections. To change one option into another, it is sufficient to set the required value for the `AccountTerminationBehavior` object.	`.LockAndRemoveAllEntitlements` `.Delete` `.Lock` `.TransferOwnership` `.DoNothing`
