Atlassian Schema of Integration Data

The integration data schema defines the structure of the data imported by the Atlassian integration. The primary data model entities include Accounts, with mandatory and optional attributes; Resources, categorized by resource type; and Entitlements, categorized by permission type.

Accounts

Atlassian Users— External and Managed Users in all directories — are retrieved from Atlassian as the source system during the integration data aggregation process. These users are then normalized and mapped to Account objects within the Atlassian integration data model.

Within the integration interface, the aggregated accounts can be accessed at: ObserveID > Identity Automation > Integrations > {specific Atlassian integration} > Accounts

The schema of account additional properties is presented in the table below. Properties that are required when creating an account are marked as Required in the On Creation column. Properties that are optional at account creation, or that can be modified later, are marked as Allowed in the On Creation column or in the On Update column, respectively.

Provisioning Rules are used to define the value of a property during account creation or update when the property is required at creation or allowed to be updated. N/A indicates that no provisioning rule is defined for the property.

Custom properties are not listed below and can be added on an ad hoc basis together with the corresponding provisioning rule.

Account Property	Type	Description	Provisioning Rule	On Creation	On Update
Name	String	The Atlassian account name.	Required	Required	N/A
AccountId	String	The account ID of the user, which uniquely identifies the user across all Atlassian products.	N/A	N/A	N/A
AccountStatus	String	The lifecycle status of the account. Valid values: `active`, `inactive`, `closed` `active` - The account is active and can be used. `inactive` - The account is inactive and doesn't have access to any resources. `closed` - The account is closed and can't be used.	N/A	N/A	N/A
AccountType	String	The type of account.Valid values: `atlassian`, `customer`, `app`	N/A	N/A	N/A
Active	Boolean	Whether the user is active.	N/A	N/A	N/A
AddedToOrg	DateTime	The ISO-8601 date and time the user was first added to any directory the admin is permitted to view in the organization.	N/A	N/A	N/A
Avatar	String	The URL of the user's public avatar.	N/A	N/A	N/A
ClaimStatus	String	The claim status for the user account. Valid values: `managed`, `unmanaged`.	N/A	N/A	N/A
DeactivatedOn	DateTime		N/A	N/A	N/A
Department	String	The department in which the user works.	Available	N/A	Allowed
DisplayName	String	The display name of the user. Depending on the user’s privacy setting, this may return an alternative value.	N/A	N/A	N/A
Email	String	The email address for the user.	Required	Required	N/A
EmailVerified	Boolean	The email verification status of the user. If true, the user verified their email after creating their account.	N/A	N/A	N/A
ForDeletion	Boolean	Indicates whether or not an account is scheduled for deletion.	N/A	N/A	N/A
JobTitle	String	The job title of the user	Available	N/A	Allowed
Locale	String	An IETF BCP 47 locale string	Available	N/A	Allowed
Location	String	The physical location of the user.	Available	N/A	Allowed
ManagementSource	String	How a managed account was added to a directory. invited – invited by an admin synced – provisioned from an identity provider If `null`, then the management source couldn’t be determined. Valid values: `invited`, `synced`	N/A	N/A	N/A
MembershipStatus	String	A list of membership statuses. Valid values: `active`, `suspended`, `no_membership` The membership status is the status of the user account in the organization. `active` - the account has an active membership for one or more directories within the organization. `suspended` - the account is suspended in ALL directories within the organization, to which the requestor has permission to access. `no_membership` - the account is in NONE of the organization’s directories.	N/A	N/A	N/A
MfaEnabled	Boolean	Whether or not an account has two-step verification enabled. If `true`, they have two-step verification enabled.	N/A	N/A	N/A
Name	String	The full name of Atlassian user.	Available	N/A	Allowed
Nickname	String	A nickname for the user in content references to the user. Constraints `maxLength`: The maximum nickname length is 30 characters `validCharacters`: Control and null characters are not allowed	Available	N/A	Allowed
Organization	String	The organisation to which the user belongs.	Available	N/A	Allowed
Picture	String	The URL of the user's profile picture.	N/A	N/A	N/A
Resources	Float	The number of resources the user has roles assigned to, linked to the directories the requestor can manage.	N/A	N/A	N/A
Self	String	The URL of the user.	N/A	N/A	N/A
Status	String	The status for the user account. Valid values: `active`, `suspended`, `not_invited`, `deactivated`, `for_deletion` This status is a composite of `accountStatus` and `membershipStatus`. `active` - `accountStatus` is `active` and `membershipStatus` is `active`. `suspended` - `accountStatus` is `active` and `membershipStatus` is `suspended`. `not_invited` - `accountStatus` is `active` and `membershipStatus` is `no_membership`. `deactivated` - `accountStatus` is `inactive`. `for_deletion` - Indicates whether or not a managed account is scheduled for deletion.	N/A	N/A	N/A
TimeZone	String	The time zone specified in the user's profile. If the user's time zone is not visible to the current user (due to user's profile setting), or if a time zone has not been set, the instance's default time zone will be returned.	Available	N/A	Allowed

Resources

The resource objects are imported from Atlassian Jira and displayed as the resources in ObserveID. The attributes of each resource type that a specific resource belongs to are displayed as Additional Properties objects of the Resource.

Resource Type and its Properties	Property Type	Description
Atlassian resource type		It is the Atlassian software as the root resource. No additional properties for it.
JiraProject resource type		It is a project created in the Jira product of Atlassian.
Description	String	A brief description of the project.
Id	String	The ID of the project.
Is Private	Boolean	Whether the project is private from the user's perspective. This means the user can't see the project or any associated issues.
Key	String	The key of the project.
Lead Account Id	String	The account ID of the user, which uniquely identifies the user across all Atlassian products. For example, 5b10ac8d82e05b22cc7d4ef5. Required in requests.
Lead Display Name	String	The display name of the user. Depending on the user’s privacy setting, this may return an alternative value.
Project Keys	Strings	Project keys must be unique and start with an uppercase letter followed by one or more uppercase alphanumeric characters. The maximum length is 10 characters.
Project Type Key	String	The project type of the project. Valid values: `software`, `service_desk`, `business`
Simplified	Boolean	Whether the project is simplified.
Status	String	Project status: `live` Search live projects. `archived` Search archived projects. `deleted` Search deleted projects, those in the recycle bin. Valid values: `live`, `archived`, `deleted`
Style	String	The type of the project. Valid values: `classic`, `next-gen`

Entitlements

The permission objects are imported from Atlassian Jira and displayed as the entitlements in ObserveID. The attributes of each permission type that a specific entitlement belongs to are displayed as Additional Properties objects of the Entitlement.

Permission Type and Permission Type Properties	Property Type	Description
Group permission type		Groups are used to manage users within the organization who need the same permissions or restrictions. Groups have the same membership throughout all Jira applications
Description	String	The group description.
Id	String	The ID of the group, which uniquely identifies the group across all Atlassian products. For example, 952d12c3-5b5b-4d04-bb32-44d383afc4b2.
Type	String	Describes the type of group. The possible values are - team-collaboration - A platform team managed in people directory. userbase-group - a group of users created in adminhub. admin-oversight - currently unused. Valid values: `USERBASE_GROUP`, `TEAM_COLLABORATION`, `ADMIN_OVERSIGHT`
CountsResources	Float	The number of resources the group has roles assigned to, linked to the directories the requestor can manage.
CountsUsers	Float	The number of users that belong to the group.
DirectoryId	String	The ID of the directory.
ExternalSynced	Boolean	Indication if group was created via IdP Sync.
ManagedBy	String	Specifies how the group is managed: external, admins, team-members, or open.
ManagementAccessDeletable	Boolean	If true, the group can be deleted.
ManagementAccessModifiable	Boolean	If true, the group can be modified.
ManagementAccessReadable	Boolean	If true, the group can be read.
Name	String	The group name.
ProjectRole permission type		The roles are a flexible way to associate users and groups with projects. The list of project roles is shared globally with all projects, but each project can have a different set of actors associated with it.
Description	String	The description of the project role.
Id	String	The ID of the project role.
Key	String	The name of the project role.
JiraTicket permission type		The JiraTicket permission type represents an issue in Jira. The properties of a JiraTicket correspond to the fields of a Jira issue.The properties presented below are illustrative and are retrieved during data aggregation from Atlassian for the JiraTicket permission type. The actual set of properties may vary depending on the fields configured for a given project and its associated screen schemes.
Creator Email	String	A field in a Jira issue.
Creator Id	String	A field in a Jira issue.
Description	String	A field in a Jira issue.
Id	String	A field in a Jira issue.
Key	String	A field in a Jira issue.
Labels	Strings	A field in a Jira issue.
Last Update	DateTime	A field in a Jira issue.
Parent Issue Id	String	A field in a Jira issue.
Parent Issue Key	String	A field in a Jira issue.
Parent Issue Name	String	A field in a Jira issue.
Reporter Email	String	A field in a Jira issue.
Reporter Id	String	A field in a Jira issue.
Status	String	A field in a Jira issue.
Summary	String	A field in a Jira issue.
Type	String	A field in a Jira issue.

Data Perspectives

The collected, normalized, and correlated Atlassian integration data can be accessed through two primary perspectives: the Integration view and the Analytics area. Together, these perspectives provide visibility into identities, accounts, resources, entitlements, and access relationships, enabling data analysis, access auditing, and governance activities.

The Integration view presents data within the scope of the currently selected integration and organizes it into three primary catalogs: Accounts, Resources, and Entitlements. To access the Atlassian integration data, navigate to: ObserveID > Dashboard > Identity Automation > Integrations > {a specific Atlassian integration} and then select the needed catalog.

The Analytics area provides a cross-integration view of aggregated data. Atlassian integration data can be accessed in Analytics by selecting a report of one of the following types: Accounts, Resources, or Entitlements, and then selecting the needed integration in filters.

Data Analysis

Organizing the integration data into the Accounts, Resources, and Entitlements catalogs or reports, both perspectives - the Integration view and the Analytics area - enable comprehensive analysis of identities, access, and permissions, where:

The Accounts catalog or report displays all Atlassian user accounts, including invited, active, and suspended accounts, and enables analysis, filtering, and reporting based on any account attribute.
The Resources catalog or report displays Jira projects aggregated from Atlassian Jira application and represented as protected resources for access governance and control.
The Entitlements catalog or report displays Atlassian groups, Jira project roles, and Jira issues (tickets) represented as assignable entitlements, enabling effective evaluation of permissions, access scope, and access alignment.

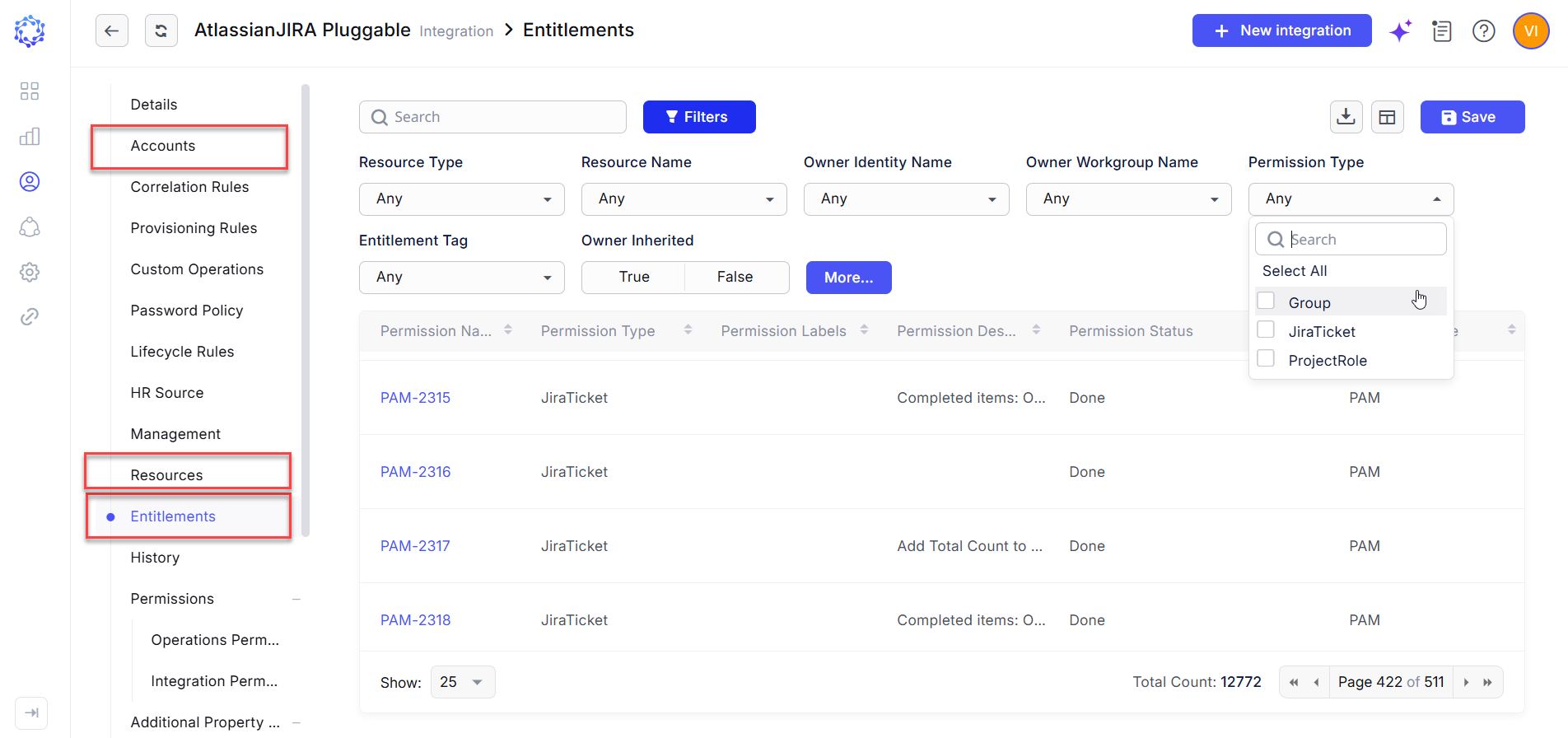

Entitlements catalog

Access auditing

Both perspectives—the Integration view and the Analytics area—present access relationship data that enables visibility into who has access to what. Each perspective provides this information in a different manner.

Within the Integration view, the catalogs expose access relationships as follows:

The Accounts catalog displays the entitlements assigned to each account.
The Resources catalog displays the identities associated with Atlassian accounts that have access to the selected resource. For example, when a Jira project is selected, the catalog displays all identities whose Atlassian accounts provide access to that project.
The Entitlements catalog displays the identities associated with Atlassian accounts that are assigned the selected entitlement. For example, when a Jira project role is selected, the catalog displays all identities whose Atlassian accounts are assigned that role.

Within the Analytics area, the Detected Entitlements report provides a consolidated view of access assignments across all Atlassian accounts. Access can be analyzed from multiple dimensions, including Jira projects, Jira project roles, Atlassian groups, accounts, and identities.

Together, these dimensions support access auditing and governance by enabling users to identify who has access to what, perform filtering and aggregation of access data, and visualize access relationships through reports, charts, and dashboards.
